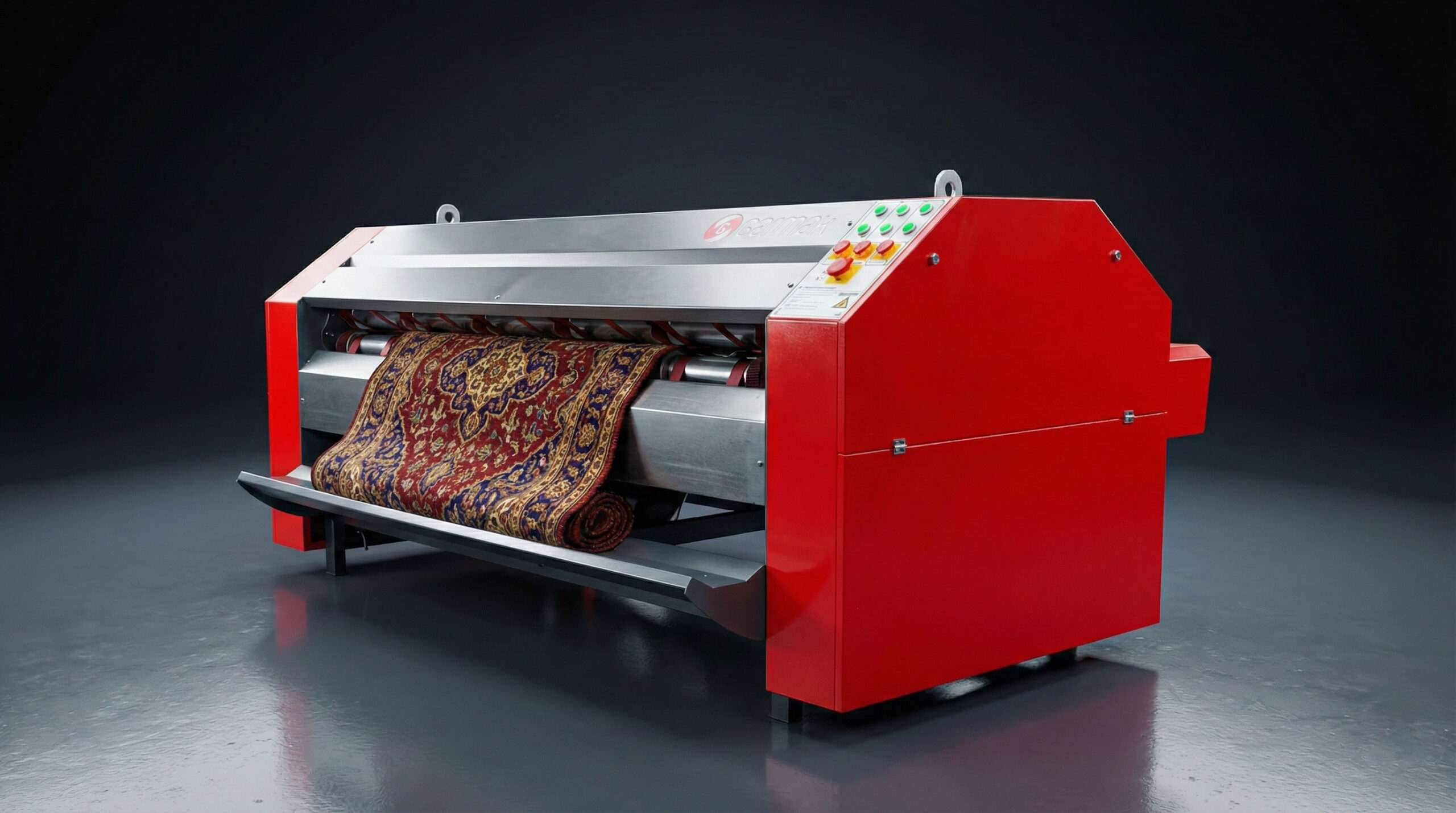

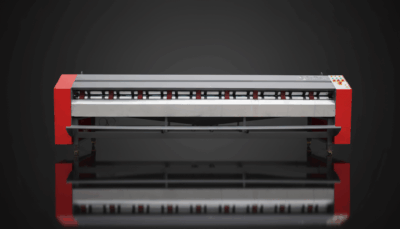

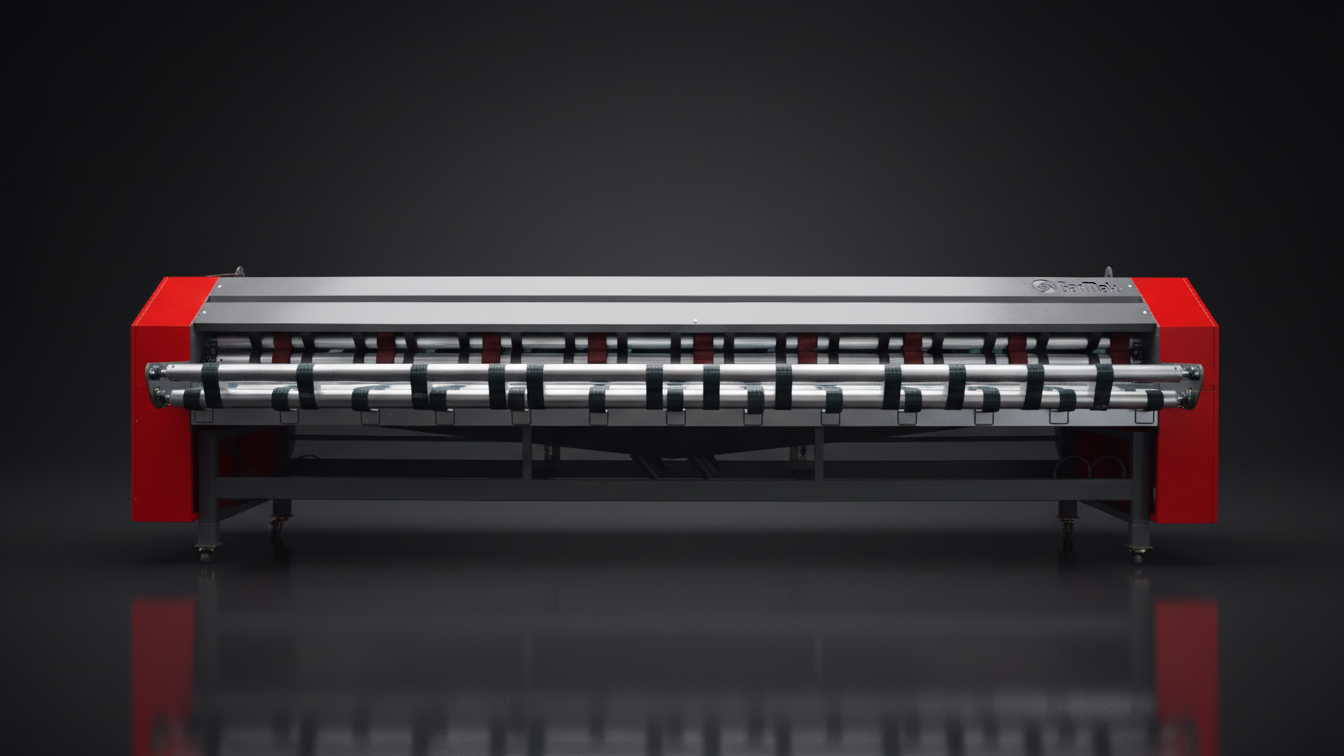

Shaker Rug Beating and Dust Removal Machine
Prepare Your Carpets for Deep Cleaning – Before Washing!
✅ Removes embedded dust and solid debris
✅ Enhances detergent efficiency and reduces water consumption
✅ 3×3 beating system (9 beaters) delivers powerful performance without damaging the carpet
✅ Front-feed / front-output design ensures easy, ergonomic handling at belt height
✅ Automatic roll-up system saves time and labour
✅ Roller brush system completes surface cleaning after beating
✅ Vacuum fan and brush-belt system trap dust and keep the machine clean automatically
✅ Space-saving design allows installation directly against the wall
✅ Optional adjustable belt speed for different carpet types
🔹 Your carpets are now cleaner, healthier, and safer – before the washing even begins!
Pre-Wash Deep Preparation
-
Removes embedded dust and solid particles trapped deep within the carpet.
-
Enhances the catalytic effect of detergents for more effective cleaning.
-
Reduces water consumption and ensures a more efficient washing process.
-
Loosens deep-seated dust that is difficult to remove in the washing machine and extracts it with ease.
Powerful and Safe Beating Technology
-

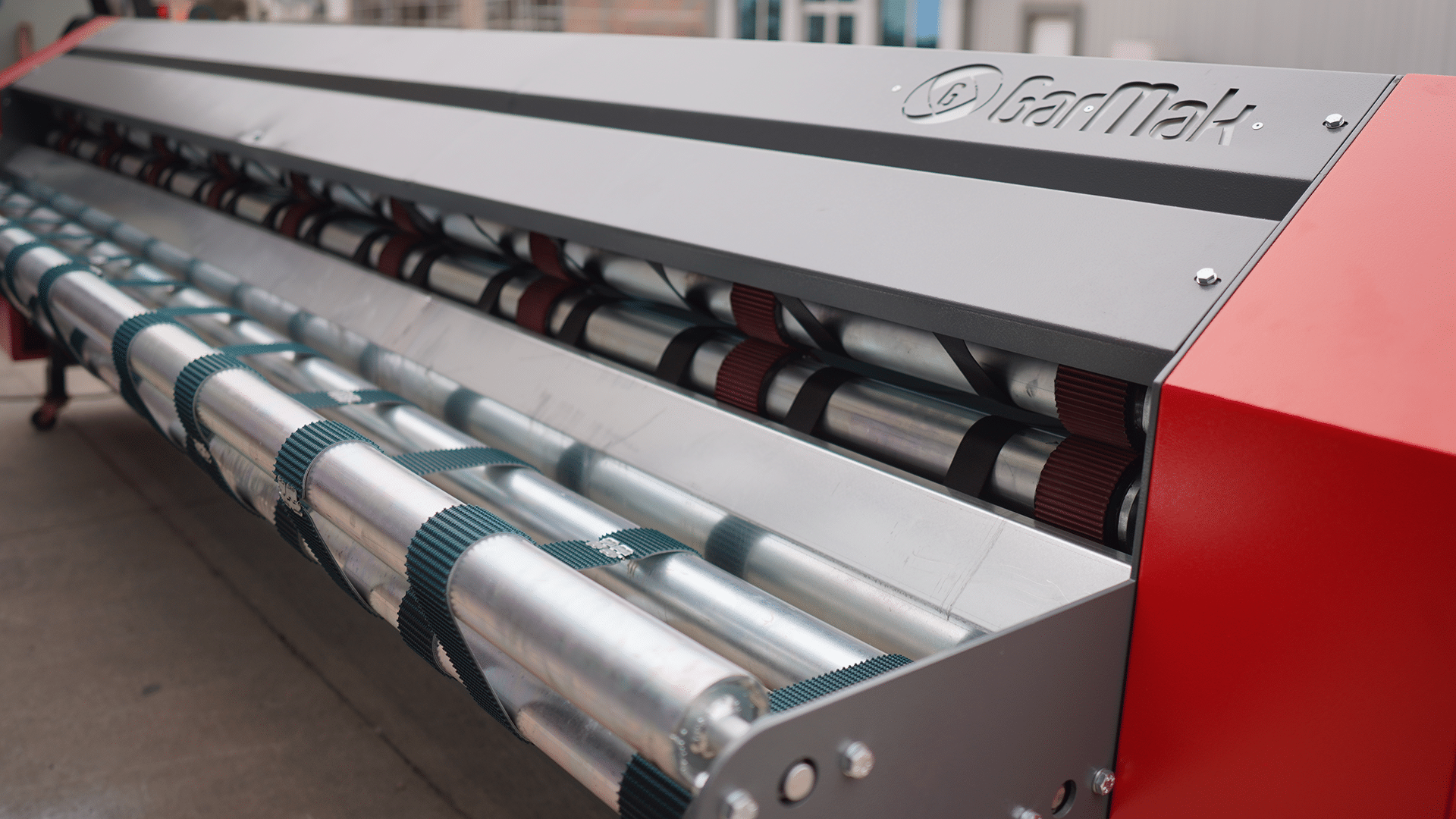

A total of 9 beaters arranged in a 3×3 configuration create a wave-like action for maximum cleaning performance.
-
Provides safe cleaning without damaging carpet fibers, helping extend the carpet’s lifespan.
-

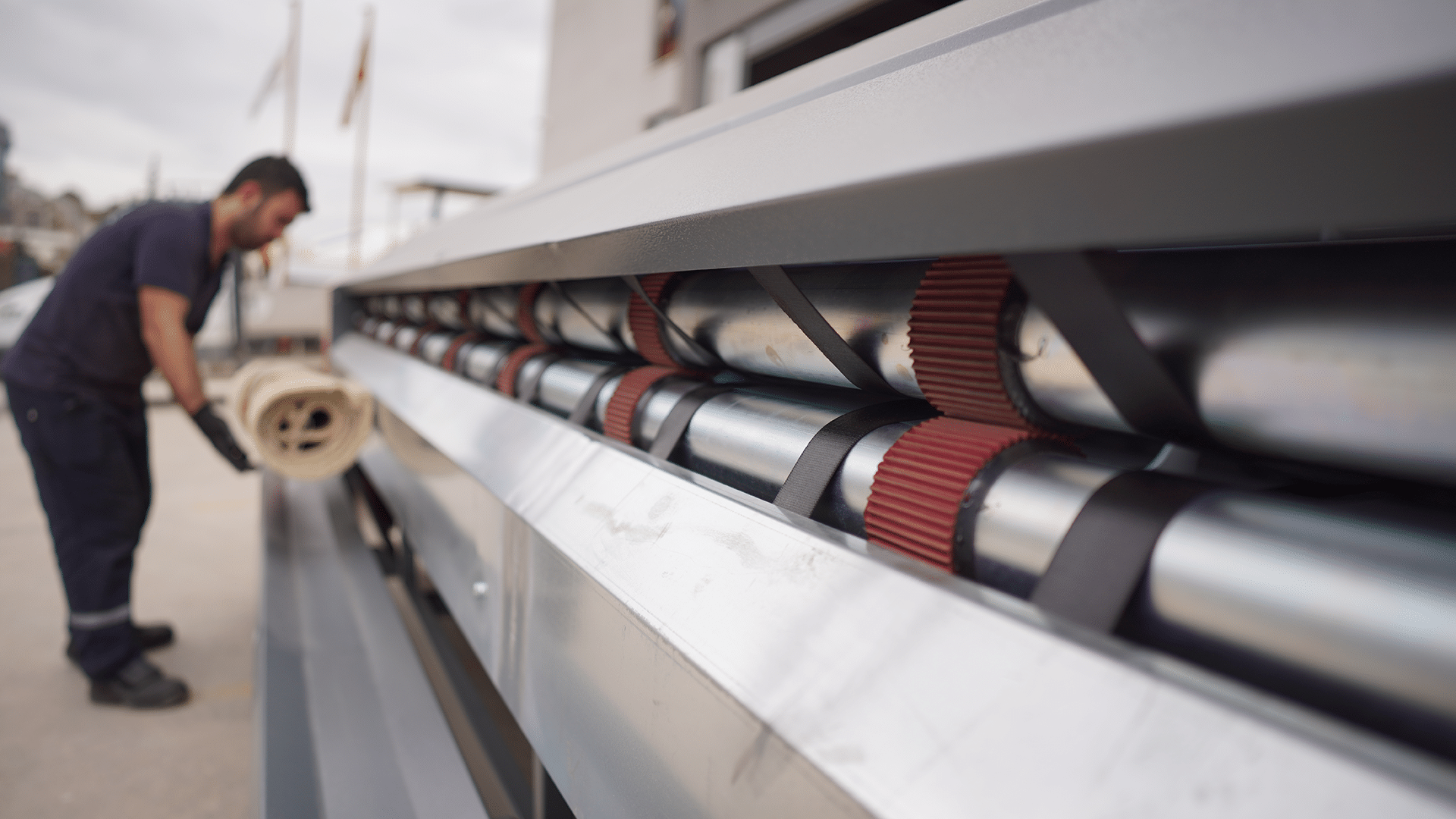

After the beating process, the roller-brush system removes any remaining surface residues.
User-Friendly Design
-
Front-feed / front-discharge operation at waist level ensures ergonomic and easy use without tiring the operator.
-
The automatic roll-wrapping system provides convenience and speed.
-
Wall-aligned installation saves space in the facility and supports efficient workflow.
Hygiene and Cleanliness
-
The vacuum fan traps collected dust and debris inside a sealed dust bag.
-
The brush-belt system performs automatic self-cleaning of the machine.
-
Optional adjustable belt speed allows compatibility with different carpet types.
👉 Thanks to our carpet beating machine, carpets are freed from even the toughest dry soil before washing, maximizing washing performance.
Speed, hygiene, and efficiency - all in one system!
| Feature | D4025 | D4032 | D5042 |
|---|---|---|---|
| Series | Professional | Professional | Professional |
| Belt Width (cm) | 250 | 320 | 420 |
| Dust Removal Speed (m/min) | 3 m/min | 3 m/min | 3 m/min |
| Vacuum Capacity (m³/h) | 3000 m³/h | 3000 m³/h | 3000 m³/h |
| Number of Beaters | 3×3 | 3×3 | 3×3 |
| Beating Speed (hit/min) | 1800 hit/min | 1800 hit/min | 1800 hit/min |
| Energy Consumption (kW/h) | 3 kW/h | 3 kW/h | 4 kW/h |
| Total Power (kW/h) | 6 kW/h | 6 kK/h | 7 kW/h |
| External Dimensions (cm – W×D×H) | 310 × 225 × 165 | 380 × 225 × 165 | 480 × 225 × 165 |
| Weight (kg) | 1000 kg | 1400 kg | 1650 kg |
Optional Features
| Optional Feature | D4025 | D4032 | D5042 |
|---|---|---|---|
| Two-Person Operation | X | X | X |
| Pre-Roll Sweeping Unit | X | X | X |
| Roll Wrapping System | ✓ | ✓ | ✓ |
Note:
All models operate on 380V / 50Hz three-phase electricity.
Models compatible with 60Hz can be manufactured upon customer request.
The Gar-Mak Carpet Beating Machine (Shaker) is an industrial pre-wash preparation system designed to remove embedded dry dust and solid particles before the wet-washing stage. Far from being an optional add-on, this machine is a core requirement for any professional carpet-cleaning facility aiming for high efficiency, superior hygiene, and operational excellence.
1. Economic Efficiency & Fast Return on Investment (ROI)
Scientific studies show that 70-80% of dirt inside carpets consists of dry particles. When these contaminants are mechanically removed before washing:
-
Up to 20% reduction in water consumption
-
Up to 50% savings in detergent usage
-
Fewer rinsing cycles
-
Reduced energy consumption
-
Less operator workload
These savings allow an average, active carpet-cleaning business to recover its investment within 6-12 months.
In short, a carpet beating machine is a strategic asset that improves profitability and operational sustainability.
2. Superior Cleaning Quality & Hygiene Improvement
The machine targets deep-seated dirt and microscopic pollutants:
-
Removes dust mites, lint, deep dust, fiber breaks, and solid residues before wet washing.
-
Mechanical beating loosens carpet fibers, allowing detergents to work more effectively due to increased catalytic interaction.
-
Even the most stubborn embedded dust becomes easier to remove in the washing machine.
This process enhances the overall hygiene level, increases the brightness and freshness of carpets, and aligns perfectly with the industry's mission to reduce water consumption.
3. The Engine of a Professional Workflow
Today, nearly all modern carpet-cleaning factories use a beating machine because:
-
It standardizes workflow
-
Accelerates pre-wash preparation
-
Reduces unnecessary carpet handling and operator fatigue
-
Improves operational layout efficiency when positioned near the washing line
-
Offers user-friendly features like automatic roll wrapping, self-cleaning brush-belt system, and ergonomic front-feed/front-output design
-
Provides safe, fiber-friendly high performance with nine beaters arranged in a 3×3 structure
Therefore, a carpet beating machine is not just beneficial — it is indispensable for achieving professional cleaning results.
Conclusion - Essential for Any Serious Carpet-Cleaning Operation
Whether viewed from an economic, hygienic, or operational perspective, the Carpet Beating Machine (Shaker):
-
Reduces costs
-
Improves cleaning quality
-
Enhances hygiene
-
Accelerates workflow
-
Increases profitability
-
Supports modern, sustainable cleaning standards
It is fundamentally the first and most important step toward high-quality carpet cleaning.
