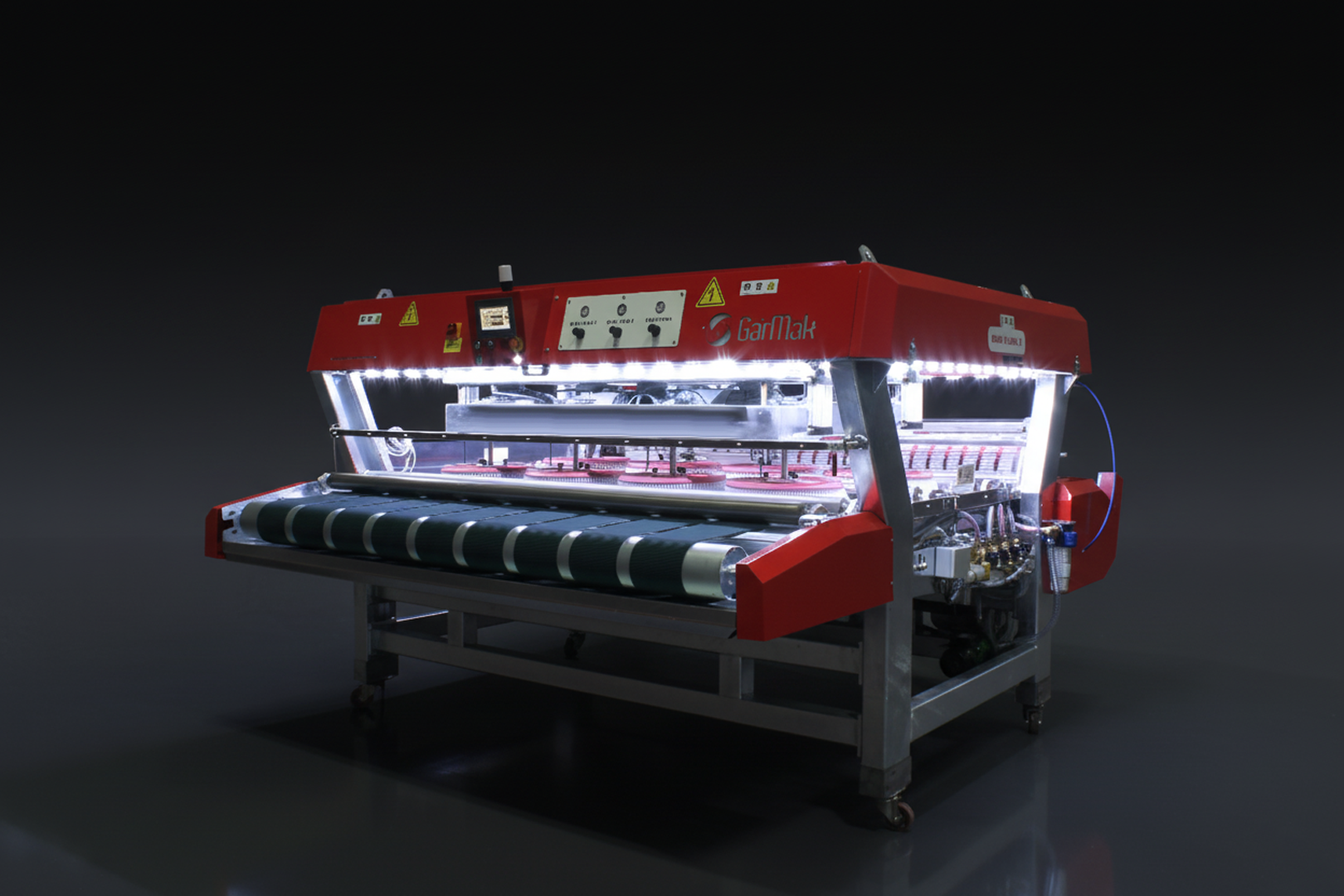

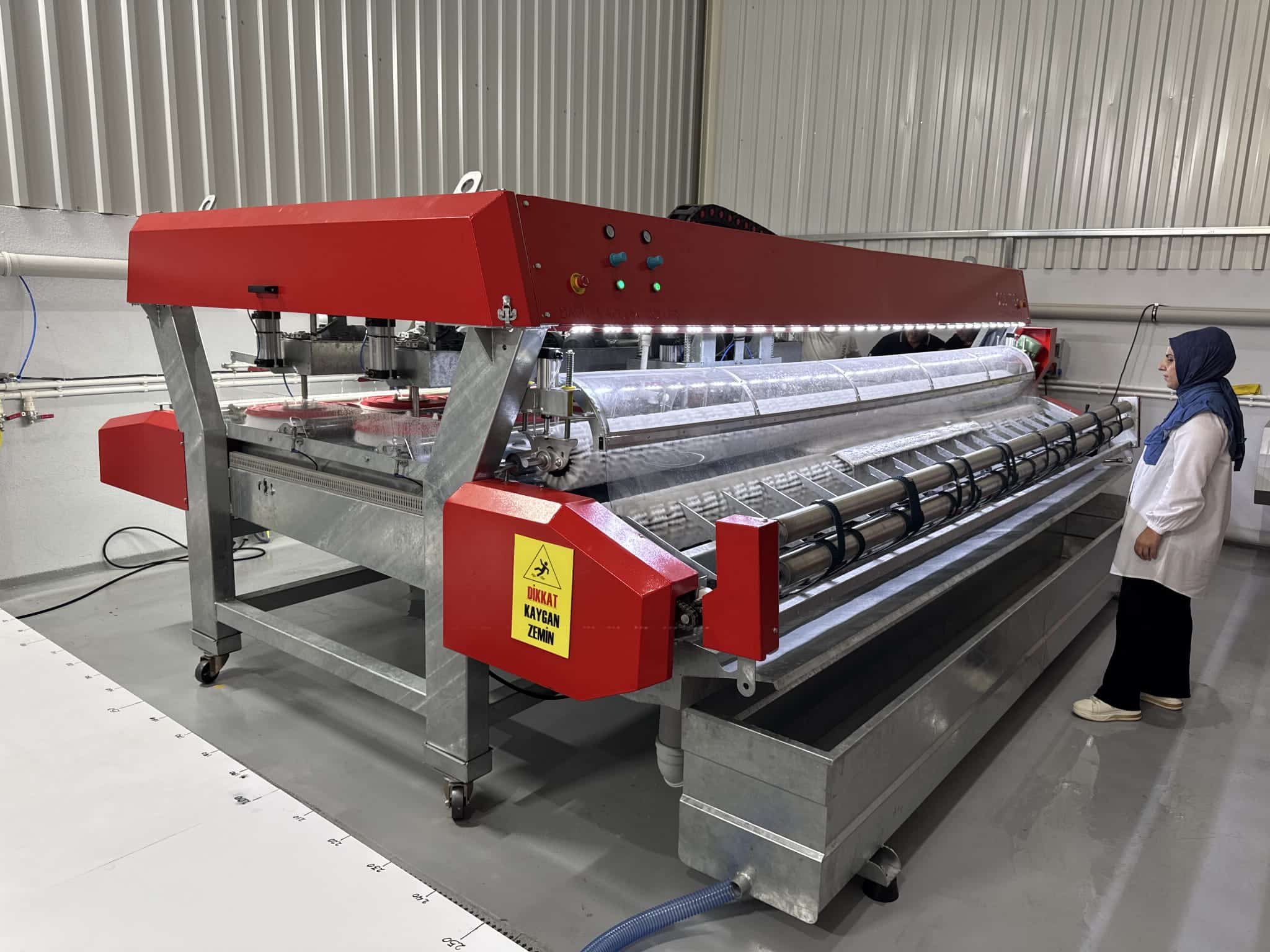

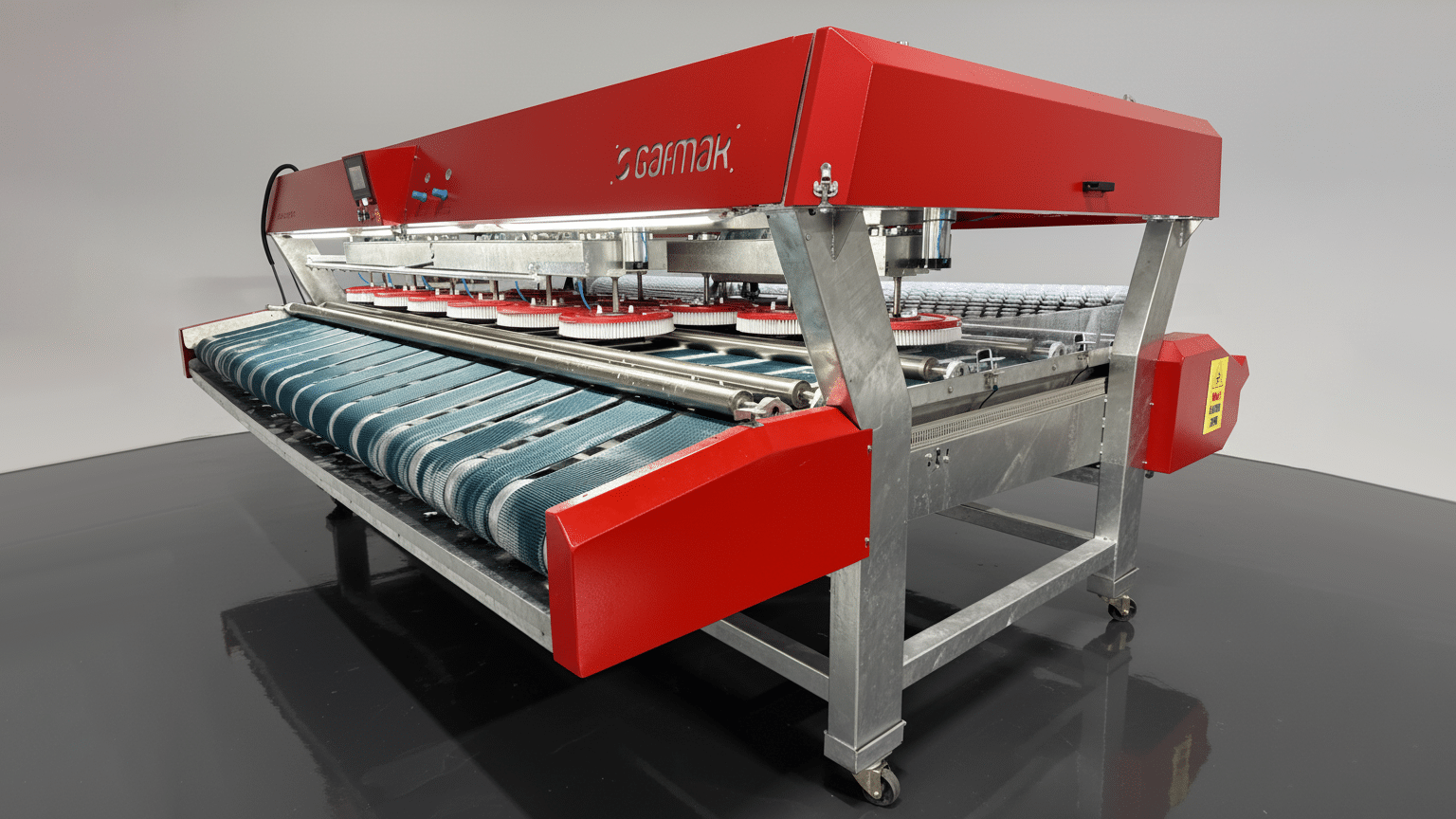

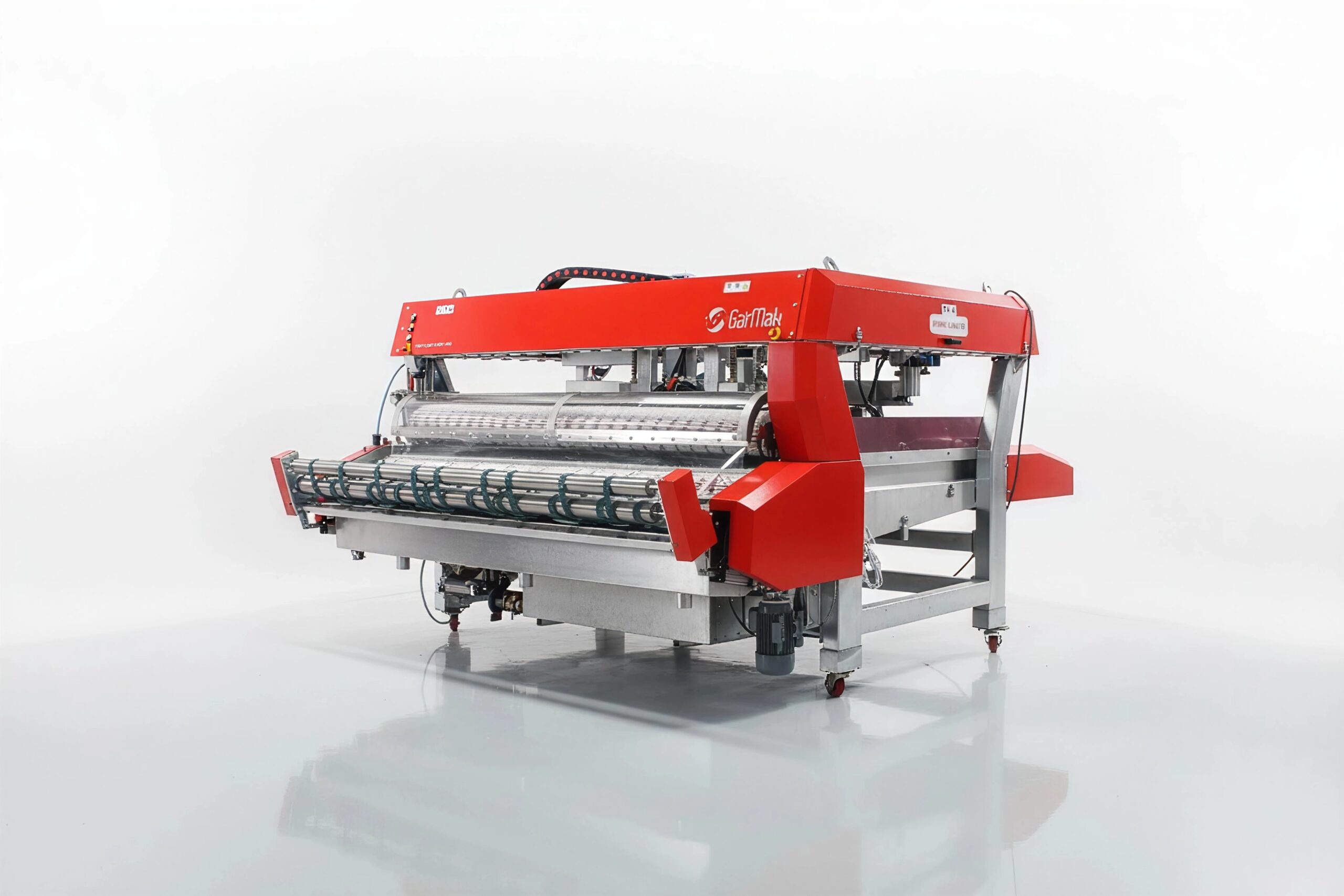

Giga Automatic Carpet Washing Machines
GIGA Series Fully Automatic Carpet Washing Machines are high-capacity, PLC-controlled conveyor-type washing systems developed for professional carpet cleaning plants. With belt widths from 250 to 420 cm, 8–18 disc brush configurations, upper–lower roller brush system, water-saving flat spray nozzle technology and advanced vacuum/roll-winding modules, they deliver maximum hygiene with minimum water and chemical consumption.
The Pro, Optima and Hybrid options offer solutions for different production volumes with high washing capacities ranging between 1000 and 1650 m² per 8-hour shift. With their galvanized chassis, automatic dosing, high-pressure pre-wash and advanced filtration systems, they provide a long-lasting, low-cost and fully automatic operation experience.
It is a high-end solution compatible with all search intents such as automatic carpet washing machine, industrial carpet washing machines, conveyor (belt-type) carpet washing machine, table-type carpet washing machine, 8, 12, 15,18-brush carpet washing machine.
GIGA Series Fully Automatic Carpet Washing Machines
Smart automation, high capacity and superior hygiene performance redefining industrial standards
Developed with Gar-Mak’s engineering vision, the
Giga Pro, Giga Optima and Giga Hybrid
series combine belt-type (conveyor) carpet washing technology with PLC-based full automation, accelerating carpet washing processes, standardizing results and minimizing operator dependency.
Offering capacities between 1000 and 1650 m² per 8-hour shift, these machines are designed with configurable brush, belt and power options to suit different plant sizes.
1) TECHNOLOGICAL DIFFERENCES BY SERIES
The technical distinctions below help you position the right machine model within the Giga family.
GIGA PRO (2 Bridges – 8/10 Brushes)
Cost-optimized solution for high-capacity operations
- Brush configuration: 4+4 = 8 Discs or 5+5 = 10 Discs
- Available belt widths: 250, 320, 420 cm
- Energy consumption: 9.9–11 kW/hour
- Water consumption: 53–63 L/min
-
Capacity: 1000–1650 m² / 8-hour shift
Advantage:
High performance with lower energy consumption, powerful vacuum and a compact power package.
GIGA OPTIMA (3 Bridges – 12/15 Brushes)
Advanced cleaning for plants with heavy carpet traffic
- Brush configuration: 4+4+4 = 12 Discs or 5+5+5 = 15 Discs
- Belt width: 250, 320, 420 cm
- Energy consumption: 13–15 kW/hour
- Water consumption: 63–71 L/min
-
Capacity: 1000–1650 m² / 8-hour shift
Advantage:
Thanks to its three-bridge structure, it delivers maximum performance on long-pile, high-grammage carpets and deep-seated dirt.

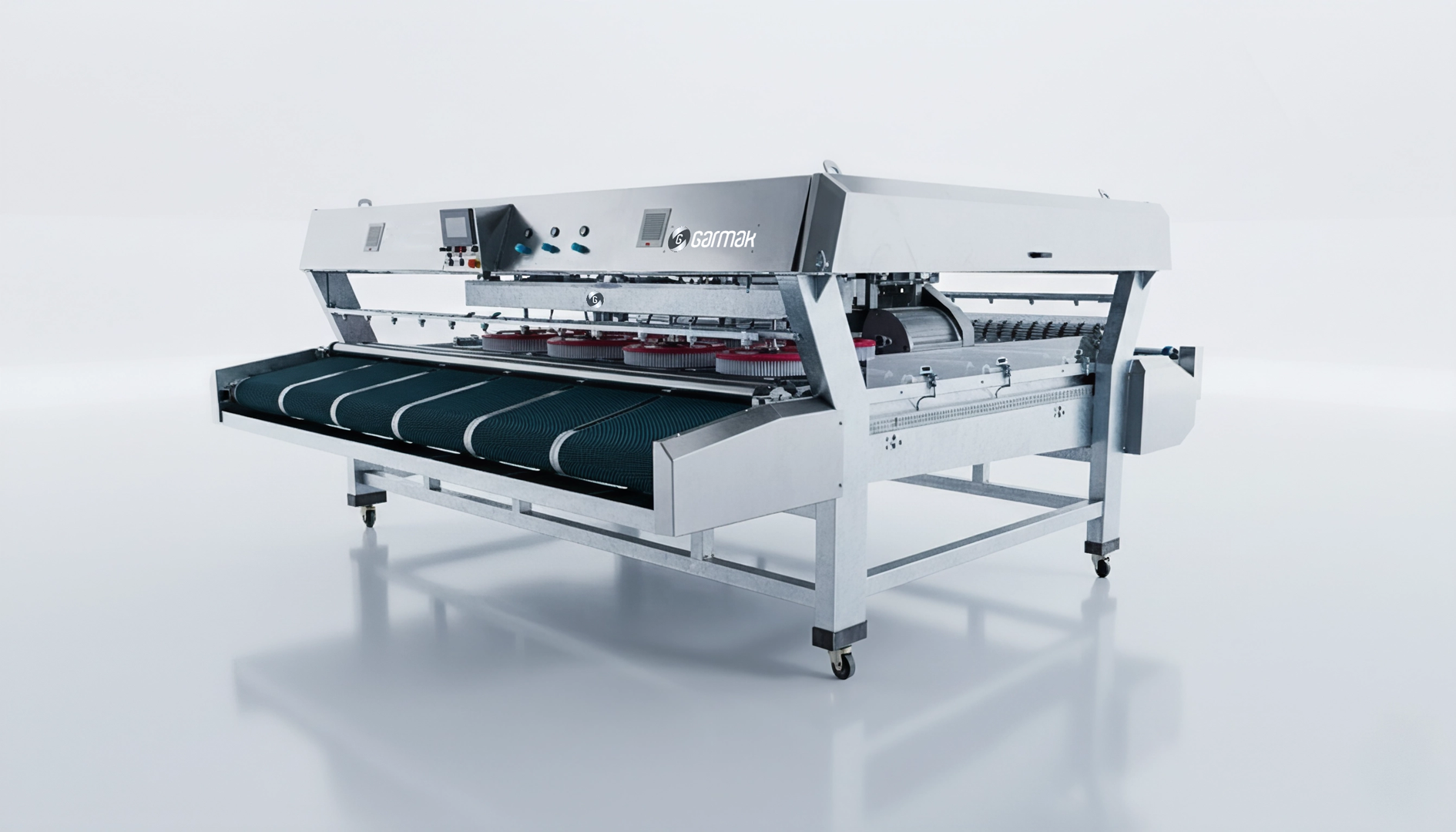

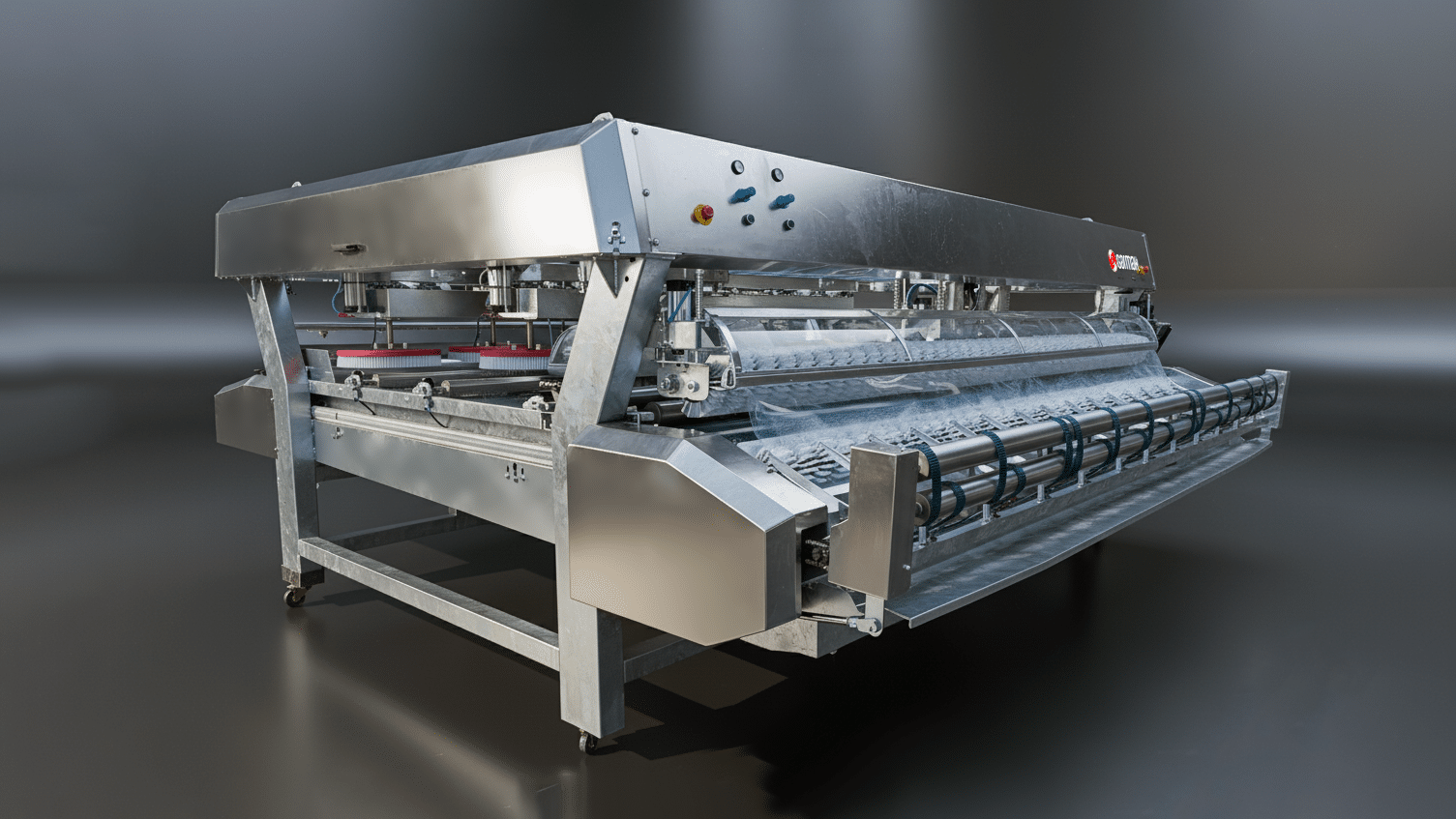

GIGA HYBRID (3 Bridges – High Power with Moving Roller System)
High-pressure hybrid configuration for the most challenging carpets
- Brush configuration: 12/15 Discs
- Moving roller system: The moving surface that contacts the carpet provides high mechanical pressure.
- Energy consumption: 14–16 kW/hour
-
Water consumption: 67–75 L/min
Advantage:
A hybrid power package for plants that require both high speed and maximum brushing pressure.
2) COMMON ADVANTAGES ACROSS ALL SERIES

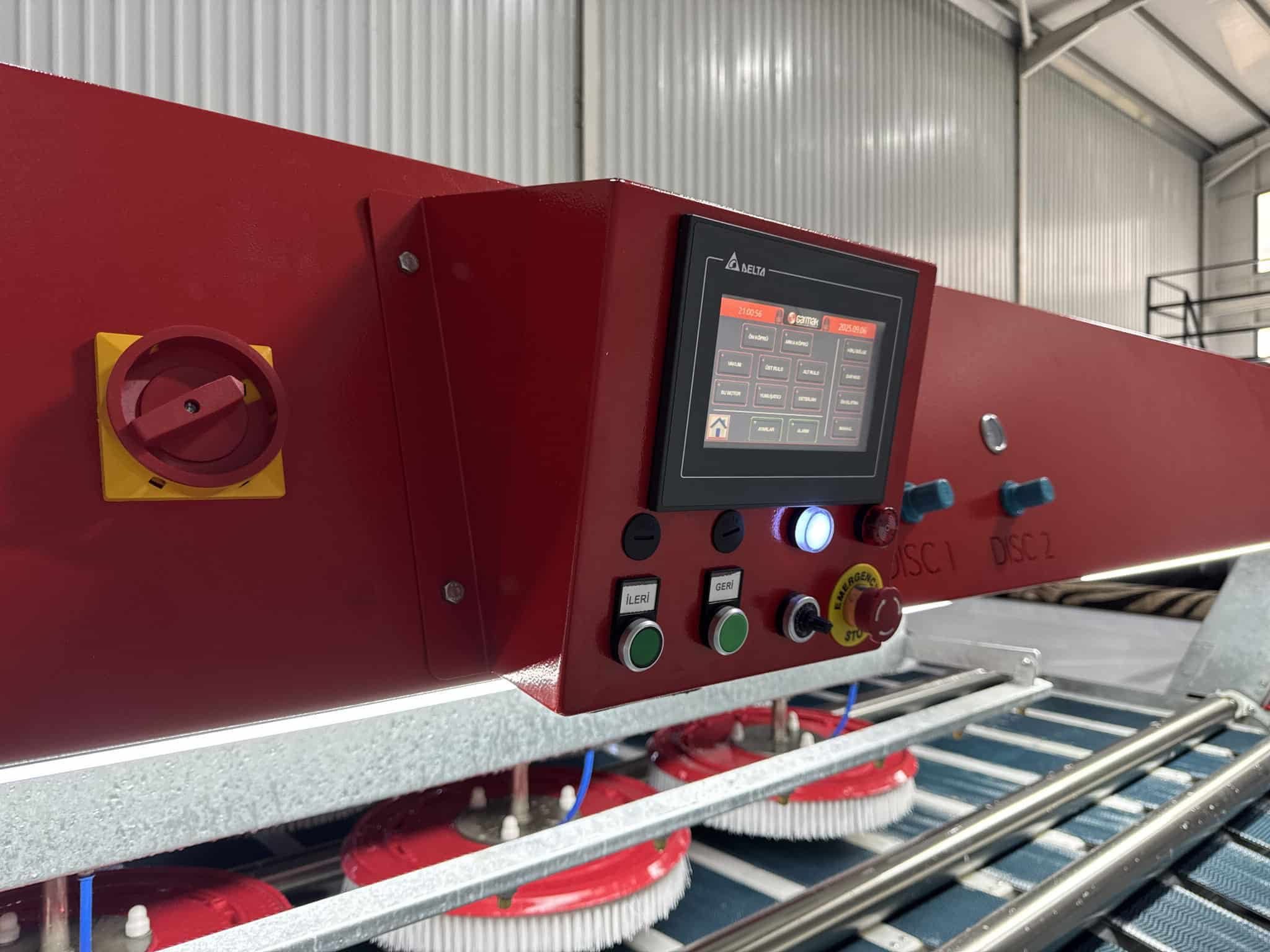

Smart PLC Management & Sensor-Based Automation
- Carpet entry, pressure adjustment and brush activation are fully sensor-controlled.
- Minimizes operator errors and ensures consistent quality at all times.
- All stages are monitored in real time via the touch panel.

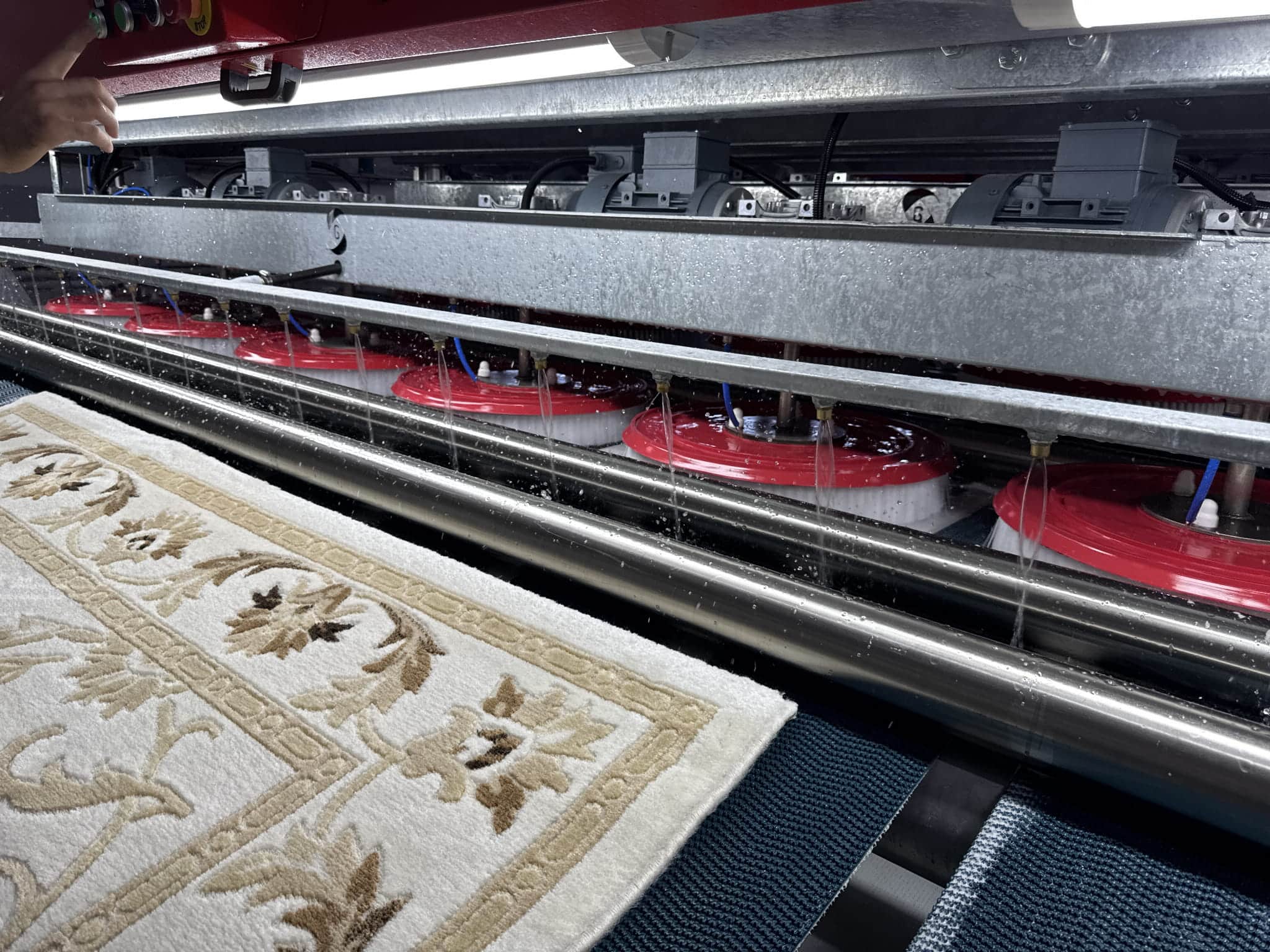

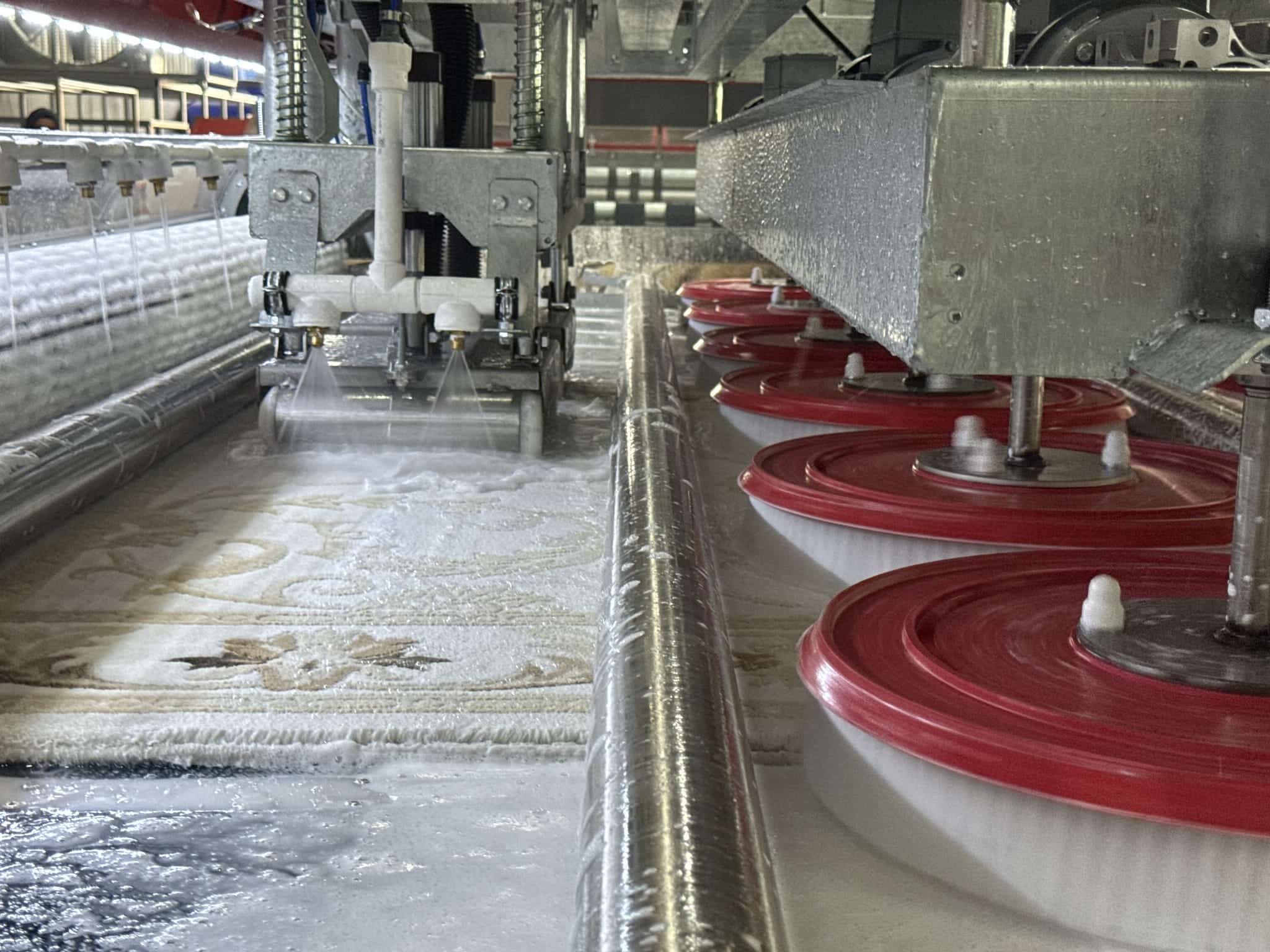

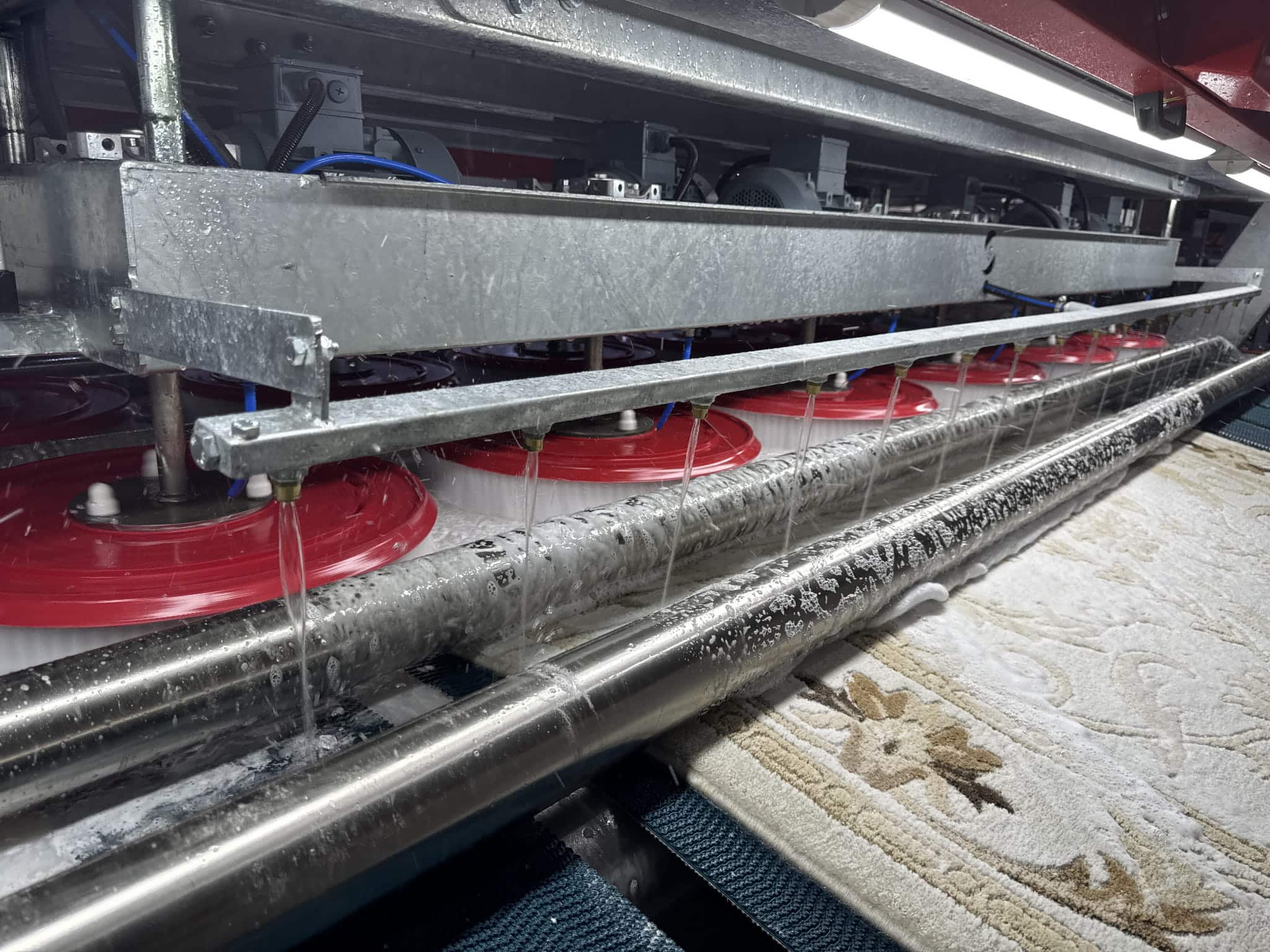

Superior Cleaning Performance

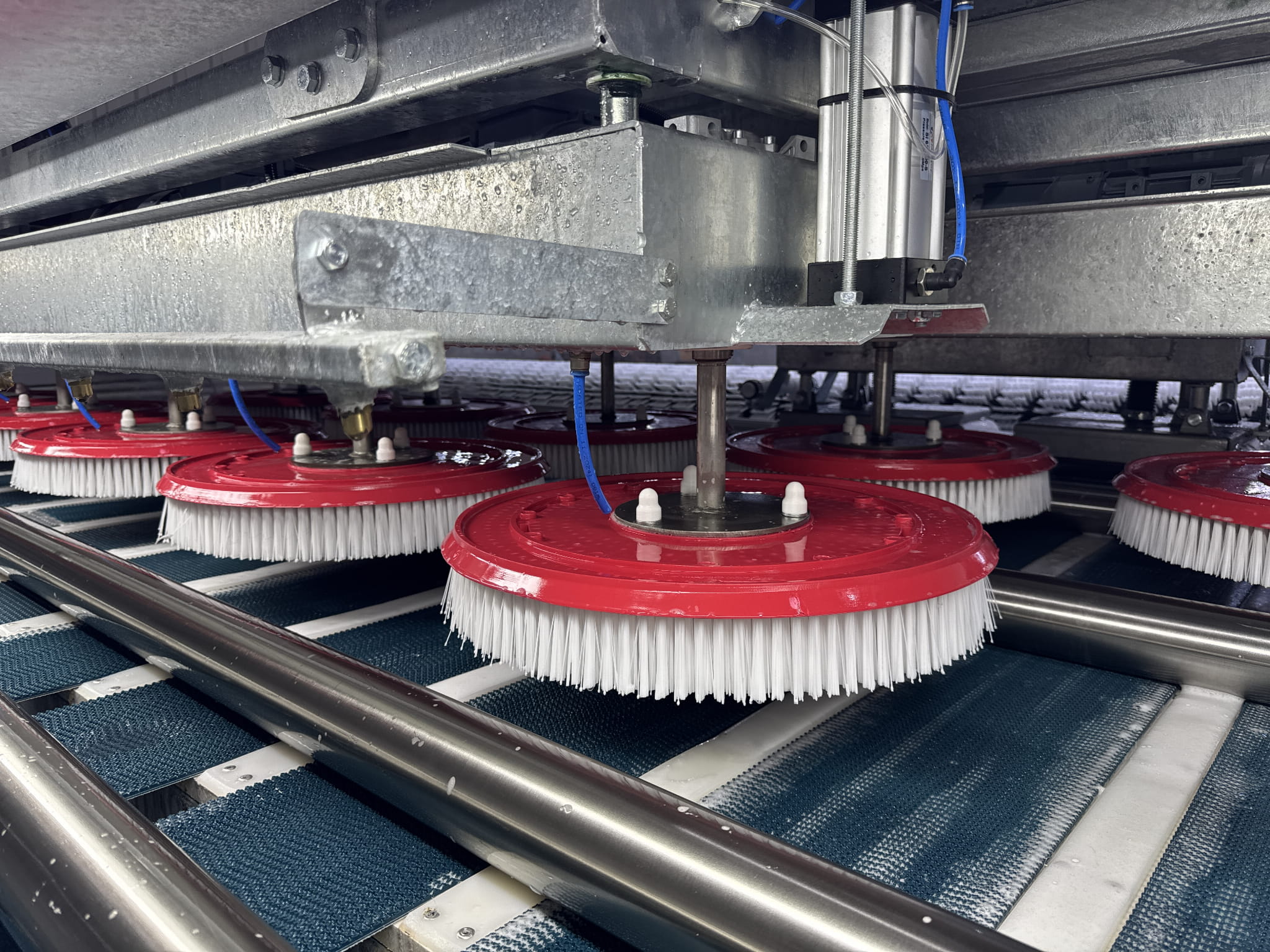

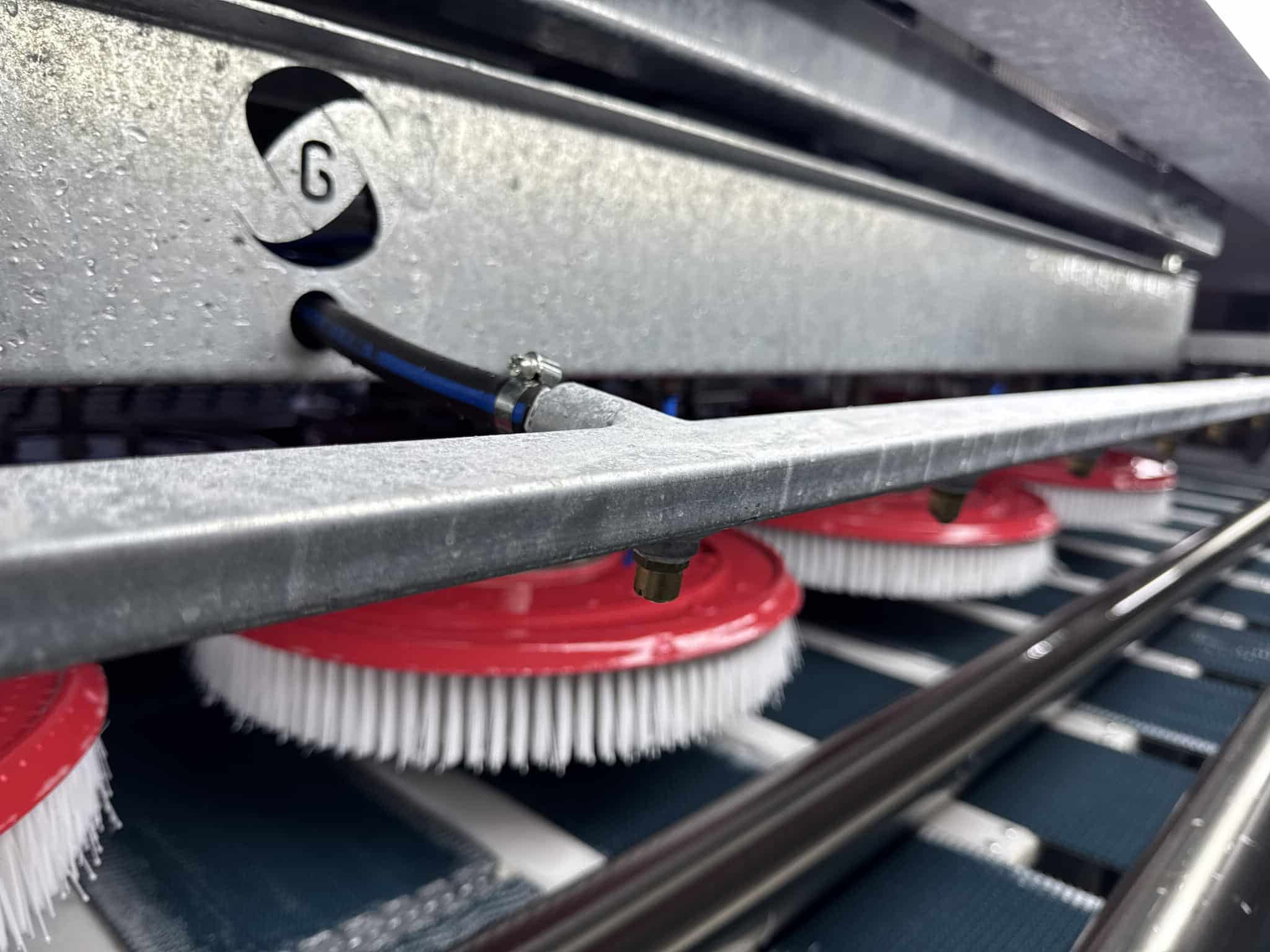

- Upper–lower roller brushes and multi-stage disc brushes

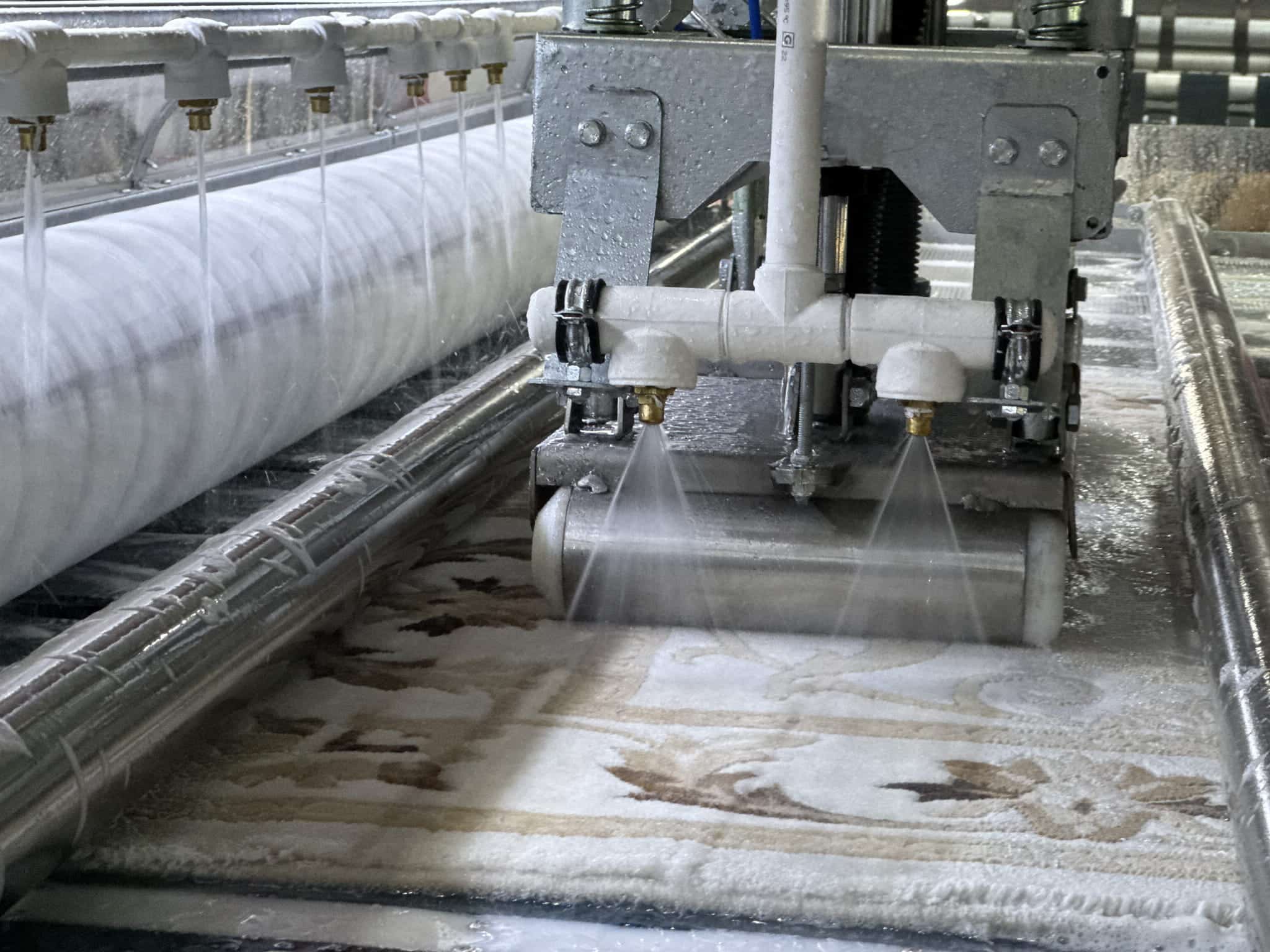

- Flat spray nozzles providing water-saving, homogeneous spraying
- Double-sided rinsing plus high-efficiency vacuum
- Faster transfer to the spin dryer and shorter overall process times
Efficiency and Savings
-
Compared to conventional systems,
up to 30% less water and chemical consumption - Ability to wash a 6 m² carpet in 3 minutes
- Fully automatic line management with only 2 operators
Durability & Operational Safety
- Heat-treated hot-dip galvanized body
- Advanced filtration and powerful pump system
- High-pressure pre-wash option
- Combinations of moving roller and vacuum modules
3) Capacity Advantage by Belt Width
- 250 cm: Optimal investment for medium-sized businesses
- 320 cm: The most preferred width for high-traffic operations
- 420 cm: Highest capacity – ideal for large-scale plants

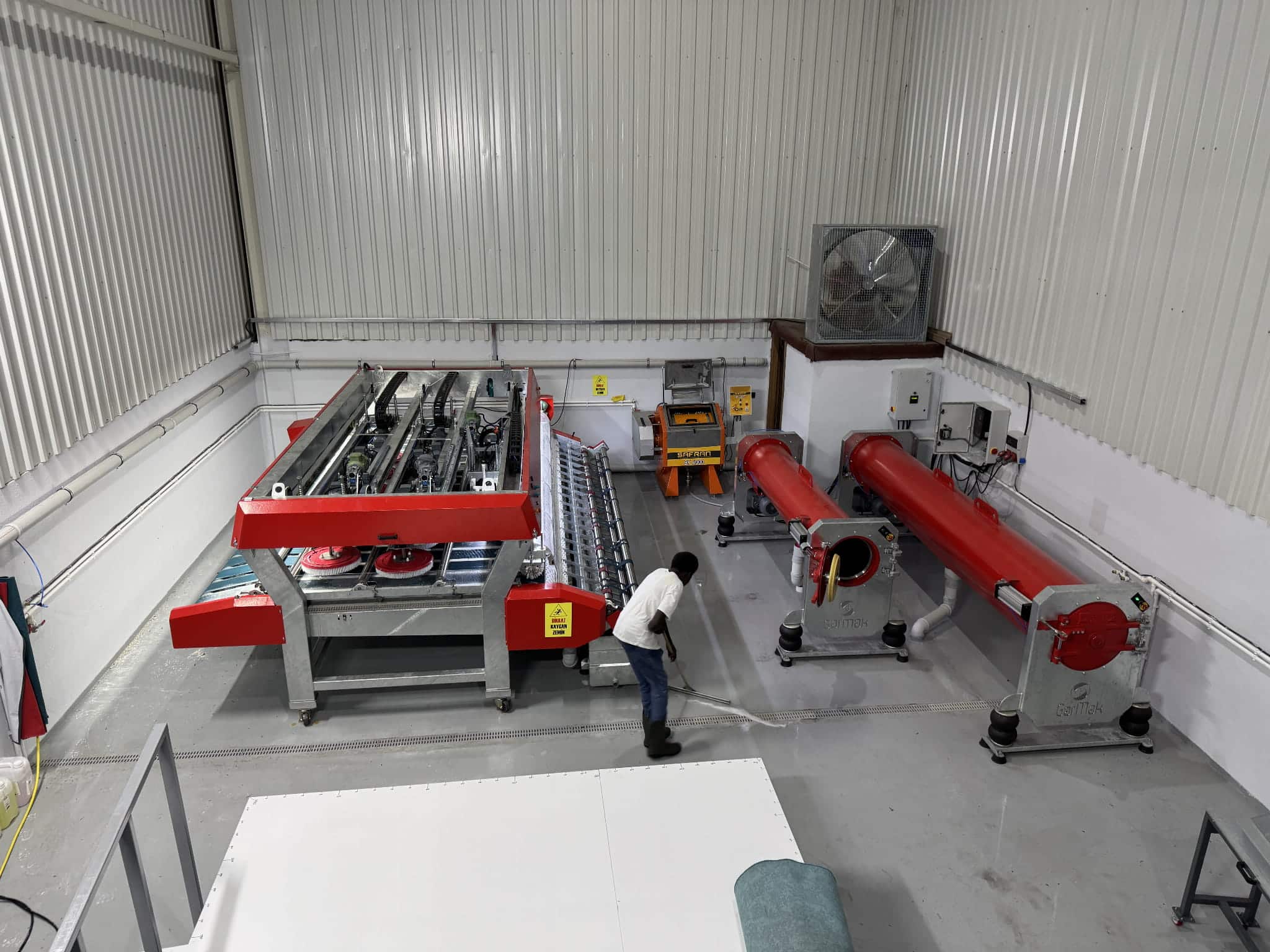

4) Business Setup and Plant Solutions
The Giga series is fully compatible with Gar-Mak’s professional plant ecosystem:
- Beater: Carpet beating & dust removal machine

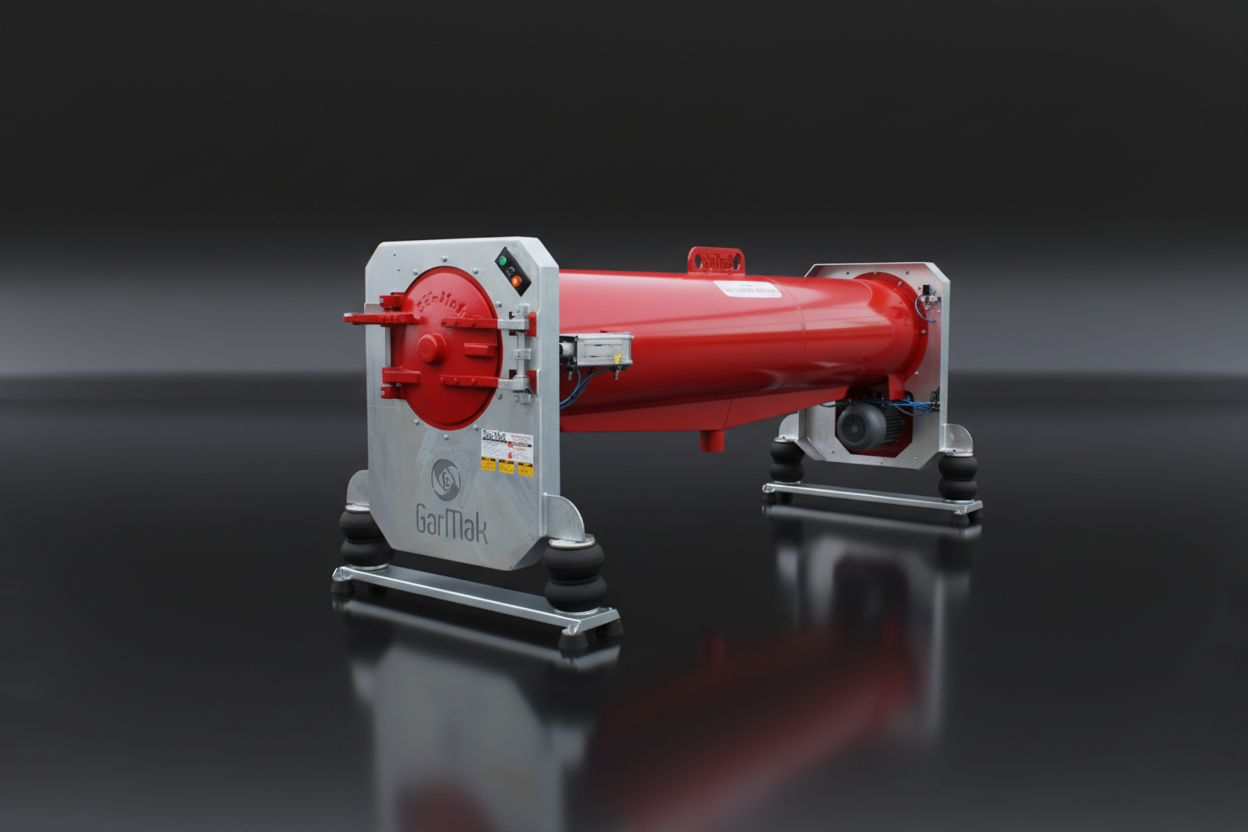

- Comfy: Carpet spin-dryer machine

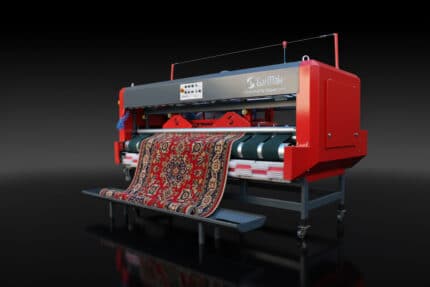

- Finito: Carpet packaging machine
In this way, it offers a fully integrated solution for businesses that want to establish a
complete carpet washing plant.
GIGA PRO FULLY AUTOMATIC CARPET WASHING MACHINE
| Feature | X3025F8RVB | X3032F8RVB | X3032F10RVB | X3042F8RVB | X3042F10RVB |
|---|---|---|---|---|---|
| Series | Pro | Pro | Pro | Pro | Pro |
| Belt Width (cm) | 250 | 320 | 320 | 420 | 420 |
| Brush Configuration | 2 Bridges (4+4 = 8 Discs) | 2 Bridges (4+4 = 8 Discs) | 2 Bridges (5+5 = 10 Discs) | 2 Bridges (4+4 = 8 Discs) | 2 Bridges (5+5 = 10 Discs) |
| Moving Roller / Vacuum | Vacuum | Vacuum | Vacuum | Vacuum | Vacuum |
| Washing Capacity (m² / 8 hours) | 1000 m² / 8 hours | 1350 m² / 8 hours | 1480 m² / 8 hours | 1450 m² / 8 hours | 1650 m² / 8 hours |
| Energy Consumption (kW) | 9.9 kW/hour | 9.9 kW/hour | 11 kW/hour | 9.9 kW/hour | 11 kW/hour |
| Total Power (kW) | 18 kW/hour | 18 kW/hour | 21 kW/hour | 18 kW/hour | 21 kW/hour |
| Water Consumption (L/min) | 53 L/min | 53 L/min | 63 L/min | 53 L/min | 63 L/min |
| Dimensions (cm) W×L×H | 320×370×195 | 390×370×195 | 390×370×195 | 490×370×195 | 490×370×195 |
| Weight (kg) | 1950 kg | 2165 kg | 2215 kg | 2490 kg | 2535 kg |
GIGA OPTIMA FULLY AUTOMATIC CARPET WASHING MACHINE
| Feature | X3025F12RVB | X3032F12RVB | X3032F15RVB | X3042F12RVB | X3042F15RVB |
|---|---|---|---|---|---|
| Series | Optima | Optima | Optima | Optima | Optima |
| Belt Width (cm) | 250 | 320 | 320 | 420 | 420 |
| Brush Configuration | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (5+5+5 = 15 Discs) | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (5+5+5 = 15 Discs) |
| Moving Roller / Vacuum | Vacuum | Vacuum | Vacuum | Vacuum | Vacuum |
| Washing Capacity (m² / 8 hours) | 1000 m² / 8 hours | 1350 m² / 8 hours | 1480 m² / 8 hours | 1450 m² / 8 hours | 1650 m² / 8 hours |
| Energy Consumption (kW) | 13 kW/hour | 13 kW/hour | 15 kW/hour | 13 kW/hour | 15 kW/hour |
| Total Power (kW) | 24 kW/hour | 24 kW/hour | 28 kW/hour | 24 kW/hour | 28 kW/hour |
| Water Consumption (L/min) | 63 L/min | 63 L/min | 71 L/min | 63 L/min | 71 L/min |
| Dimensions (cm) W×L×H | 320×425×195 | 390×425×195 | 390×425×195 | 490×425×195 | 490×425×195 |
| Weight (kg) | 2270 kg | 2550 kg | 2620 kg | 2945 kg | 3016 kg |

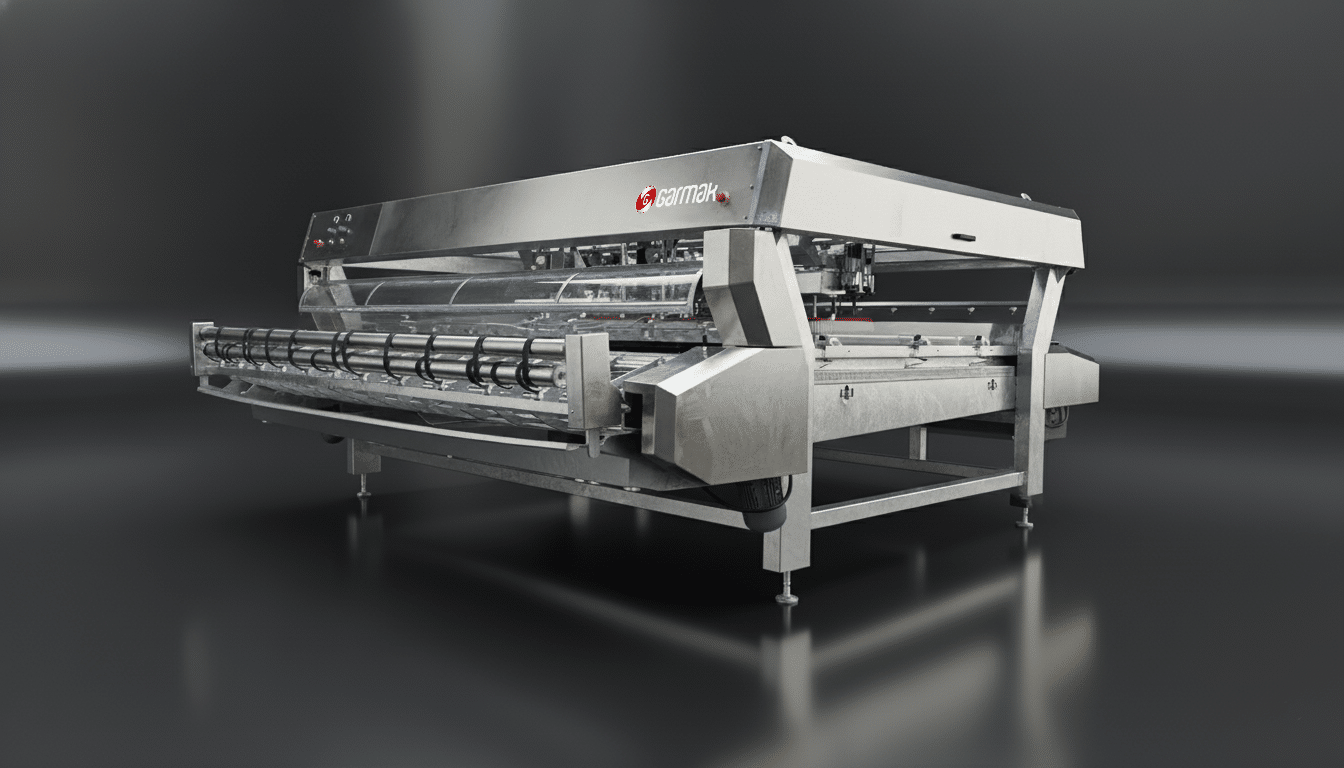

GIGA HYBRID FULLY AUTOMATIC CARPET WASHING MACHINE
| Feature | X3025F8RGB | X3032F8RGB | X3032F10RGB | X3042F8RGB | X3042F10RGB |
|---|---|---|---|---|---|
| Series | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Belt Width (cm) | 250 | 320 | 320 | 420 | 420 |
| Brush Configuration | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (5+5+5 = 15 Discs) | 3 Bridges (4+4+4 = 12 Discs) | 3 Bridges (5+5+5 = 15 Discs) |
| Moving Roller / Vacuum | Moving Roller | Moving Roller | Moving Roller | Moving Roller | Moving Roller |
| Washing Capacity (m² / 8 hours) | 1000 m² / 8 hours | 1350 m² / 8 hours | 1480 m² / 8 hours | 1450 m² / 8 hours | 1650 m² / 8 hours |
| Energy Consumption (kW) | 14 kW/hour | 14 kW/hour | 16 kW/hour | 14 kW/hour | 16 kW/hour |
| Total Power (kW) | 25 kW/hour | 25 kW/hour | 29 kW/hour | 25 kW/hour | 29 kW/hour |
| Water Consumption (L/min) | 67 L/min | 67 L/min | 75 L/min | 67 L/min | 75 L/min |
| Dimensions (cm) W×L×H | 320×425×195 | 390×425×195 | 390×425×195 | 490×425×195 | 490×425×195 |
| Weight (kg) | 2225 kg | 2505 kg | 2575 kg | 2900 kg | 2970 kg |
GIGA SERIES OPTIONS
| Option | X3025F8XXX | X3032F8XXX | X3032F10XXX | X3042F8XXX | X3042F10XXX |
|---|---|---|---|---|---|
| Automatic Dosing System | ✓ | ✓ | ✓ | ✓ | ✓ |
| High-Pressure Pre-Wash | ✓ | ✓ | ✓ | ✓ | ✓ |
| Extra Brush Set | ✓ | ✓ | ✓ | ✓ | ✓ |
| Advanced Filtration System | ✓ | ✓ | ✓ | ✓ | ✓ |
Note: All models operate with 380V / 50Hz three-phase electricity and require 6–8 Bar compressed air. 60Hz-compatible models can be manufactured upon request.
1) The fastest and most consistent results in the industry
Thanks to fully automatic PLC control, every carpet is washed with the same quality; results do not change even if the operator changes. This is a critical advantage for operational continuity and customer satisfaction.
2) Lower costs, higher profitability
With its sensor system that optimizes water, detergent and energy consumption, it provides
up to 30% savings. With a capacity of 1000–1650 m² per 8-hour shift, it reduces the unit cost of your operation.
3) Superior cleaning – guaranteed results on every carpet type
The 8–18 brush configuration, combined with upper–lower roller brushes and vacuum, delivers deep hygiene even on long-pile, shaggy, wool, woven and heavily soiled carpets.
4) Fast return on investment
Giga series machines are among the models that retain the highest resale value across Türkiye and Europe.
5) Modular design – the machine grows as your business grows
With different belt widths, brush counts, hybrid/vacuum options and additional modules, the right configuration is selected according to your plant capacity.
6) Local manufacturing – instant access to technical support
Gar-Mak’s 22 years of manufacturing experience, spare parts guarantee and field-proven engineering approach ensure a long-lasting investment.
7) The ideal starter machine for new plants
For all users searching for
"I want to open a carpet cleaning shop", the Giga series is the most suitable solution with its high capacity, low manpower requirement and consistent quality.
Related products
Beater Carpet Beating and Dust Removal Machine
✅ Reduced water and chemical consumption – Enhances detergent efficiency and improves washing performance.
✅ 3×3 beating system (9 beaters) – Delivers maximum cleaning power without damaging carpet fibers.
✅ Front-feed / front-output ergonomics – Waist-level handling ensures operator comfort and easy use.
✅ Automatic roll-up system – Quickly and neatly rolls carpets, saving time and labour.
✅ Roller brush system – Completes final surface cleaning after the beating process.
✅ Vacuum fan + brush-belt system – Captures dust and automatically keeps the machine clean.
✅ Space-saving design – Can be positioned directly against the wall for efficient use of workspace.
✅ Optional adjustable belt speed – Allows optimal performance for different carpet types.
Blanket and Quilt Washing Machine
Brendo Otomatik Tente Yıkama Makinesi
Dehumidifier and Carpet Drying Machine

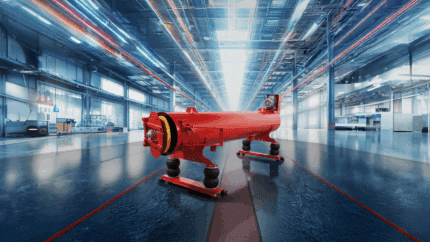

Nivo Carpet Spinning and Centrifuge Machine
✅ 1300 RPM high-speed spin
✅ Silent and vibration-free bellows suspension system
✅ Pneumatic lid with easy-lock safety mechanism
✅ Spheroidal graphite cast-iron lid – designed for years of trouble-free operation
✅ Automatic braking system with timer-controlled panel
✅ Soft-start support – ensures smooth operation and energy savings
✅ Stainless steel inner drum – hygienic and durable
✅ Optional inverter control panel and various size configurations
✅ With this machine, your carpets don’t just dry fast — they dry perfectly!

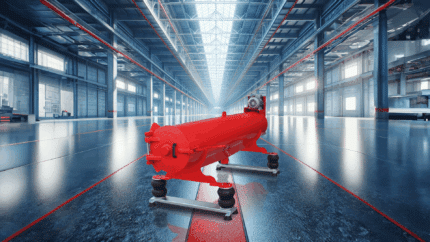

Sage Carpet Spin Dryer Centrifuge Machine
